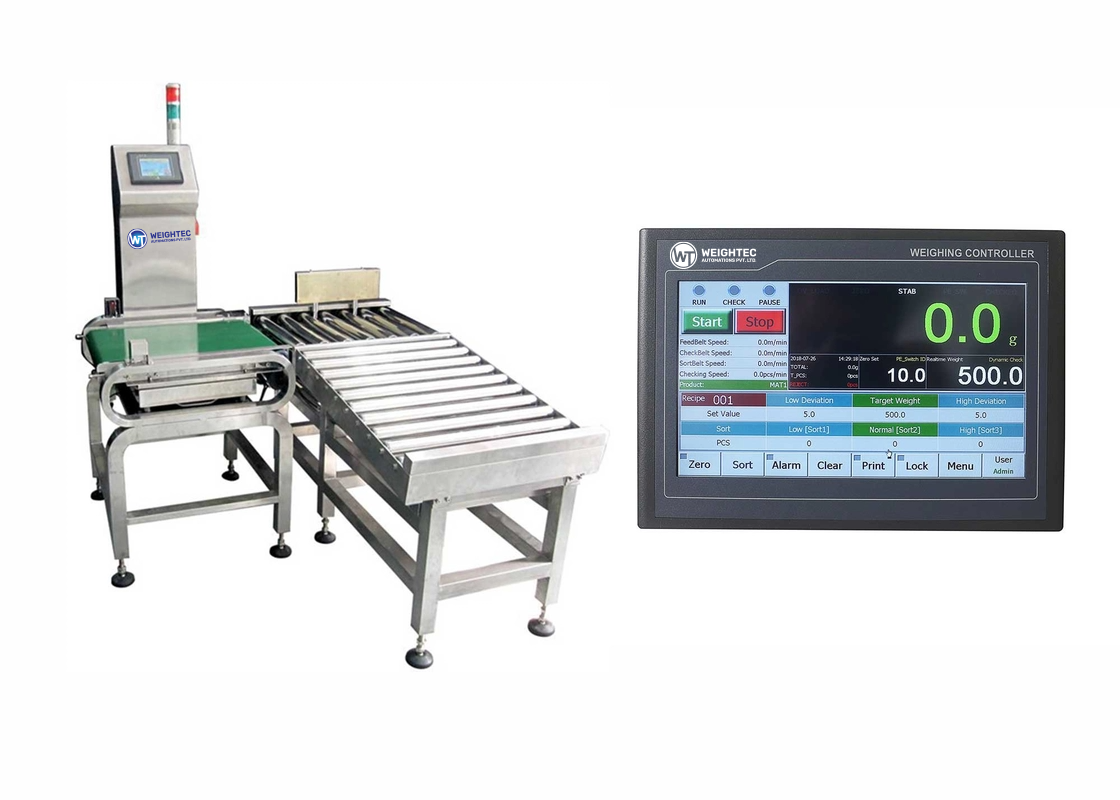

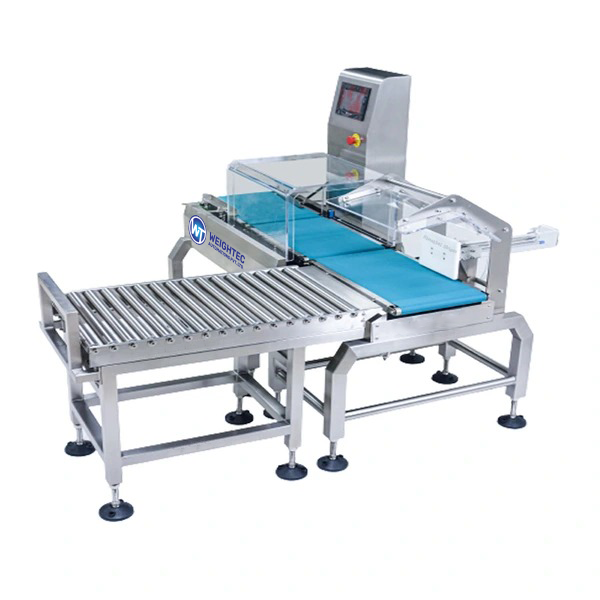

Our Conveyor Weighing Systems are engineered for dynamic, continuous weight monitoring directly on conveyor belts. Designed for industries where throughput and accuracy are critical, these systems measure material flow in real time and provide essential data for process optimization and cost control.
Features:
- High-speed load cells with stable performance in dynamic conditions
- Real-time flow rate and totalized weight display
- Strong construction to withstand industrial vibration and harsh environments
- Integration with automation systems for quality control and reporting
- Minimal maintenance with user-friendly calibration options
Applications:
- Mining and aggregates for bulk material handling
- Cement and construction material plants
- Food processing and packaging lines
- Logistics and warehousing for load monitoring
- Fertilizer and chemical industries for continuous production
| Model | Belt Width | Capacity Range | Load Cell Type | Accuracy | Output Options | Protection |
| WT-CWS-300 | 300–600 mm | Up to 20 TPH | Single Idler Weigh Frame | ±0.5% | 4-20mA, RS-485 | IP65 |
| WT-CWS-600 | 600–900 mm | Up to 100 TPH | Dual Idler Weigh Frame | ±0.25% | 4-20mA, Modbus | IP65/IP67 |
| WT-CWS-1000 | 1000–1500 mm | Up to 300 TPH | Multi-Idler Weigh Frame | ±0.25% | Modbus TCP/IP, Profibus | IP67 |
| WT-CWS-HS | Custom | High-Speed Lines | Customized Sensors | ±0.1% | Ethernet/IP, SCADA | IP67/IP68 |
