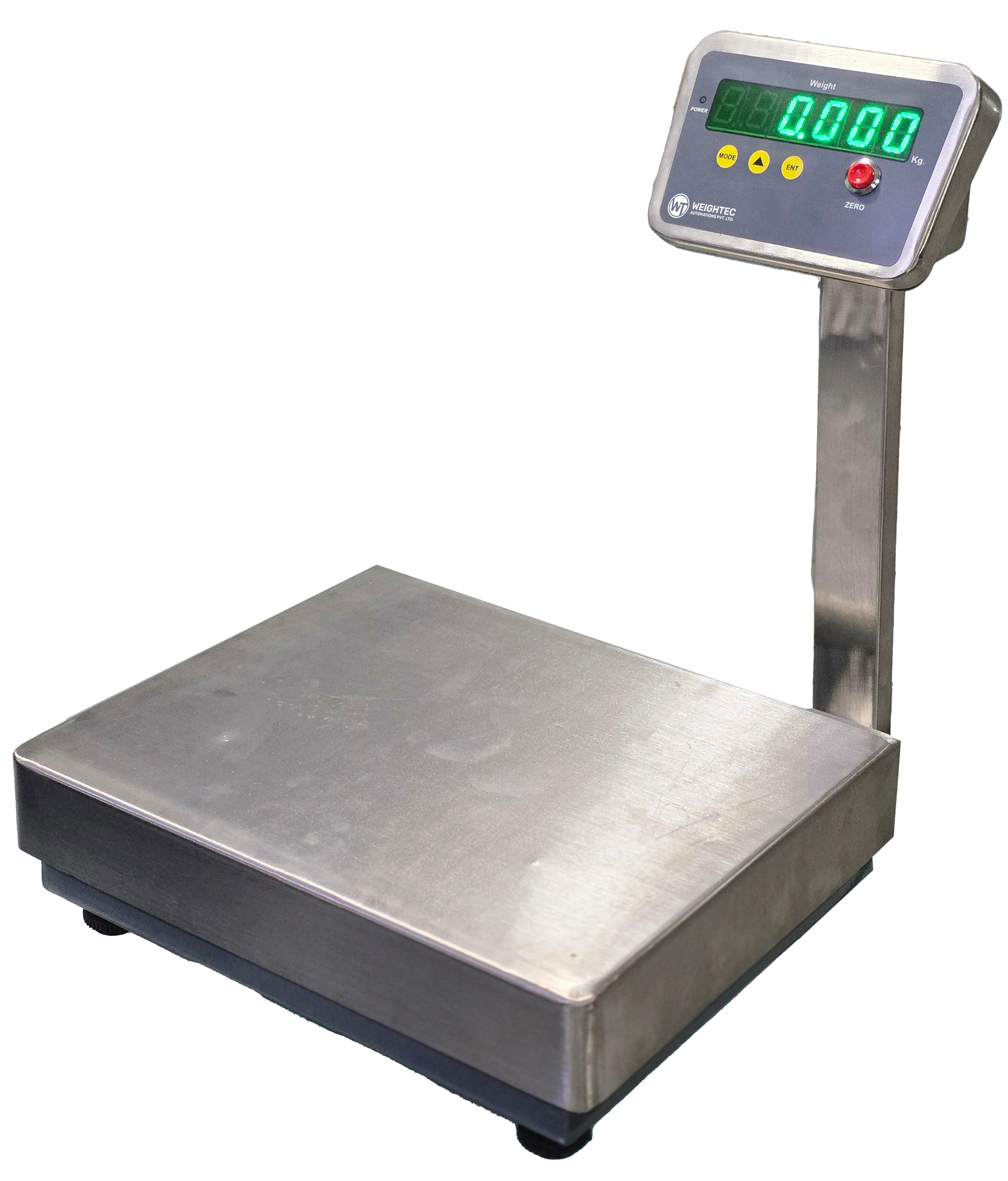

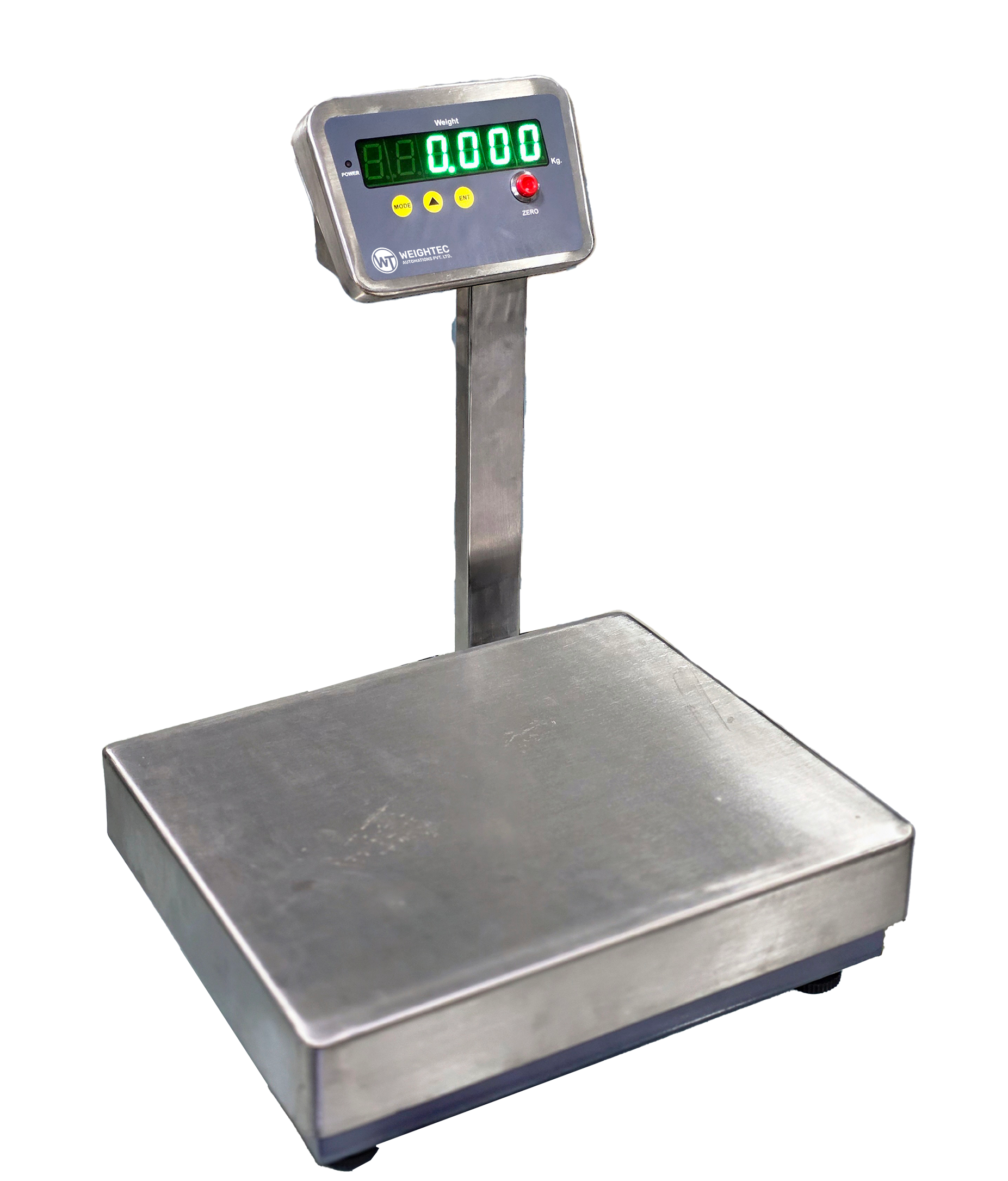

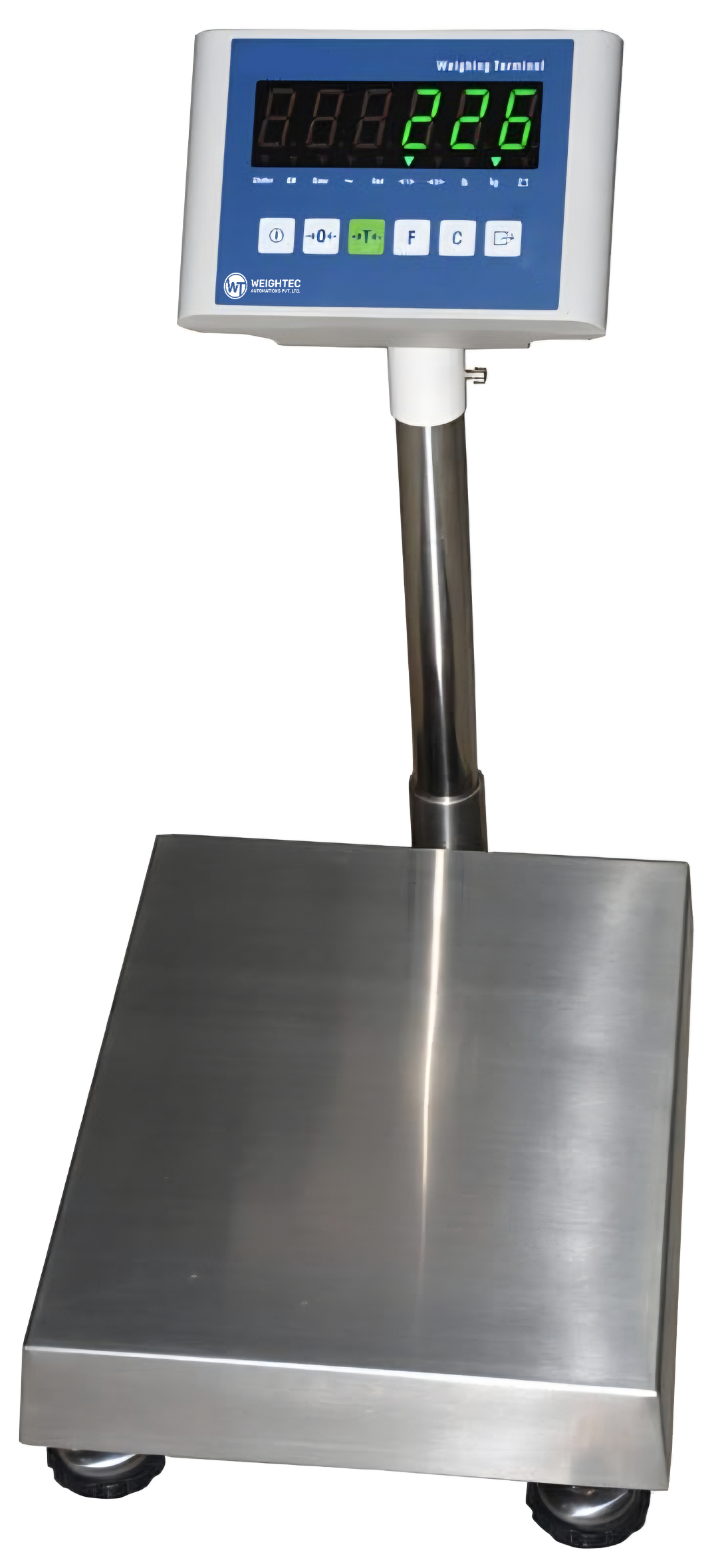

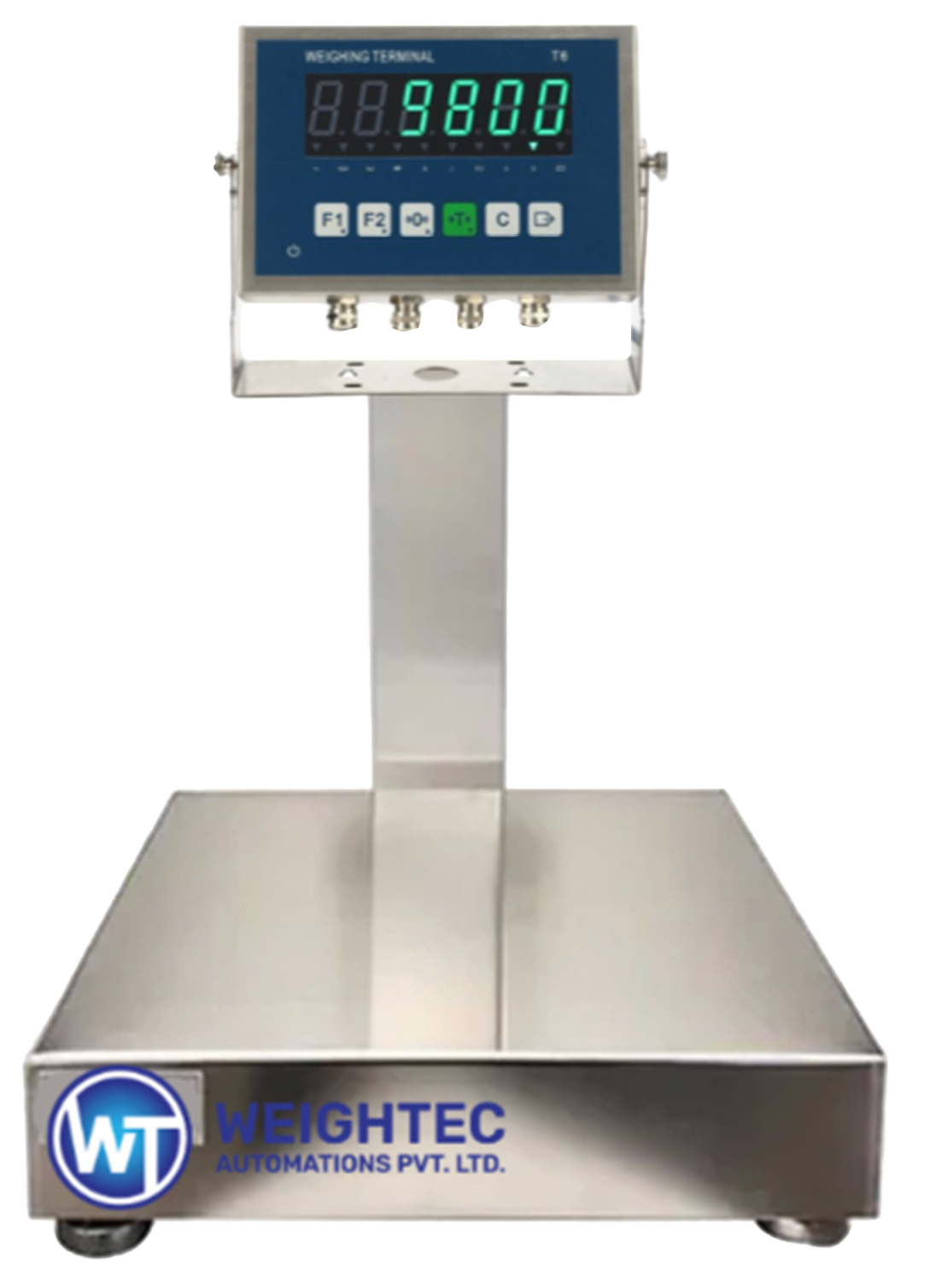

Industrial Bench Scales offer compact, high-precision weighing for workstations, inspection lines, and production tables. Engineered for medium-capacity weighing tasks, they provide quick stabilization and user-friendly operation for repetitive weighing cycles.
Built with stainless steel or industrial-coated platforms, these scales are suitable for food processing, assembly lines, chemical batching, packing operations, and laboratory environments. Many bench models include advanced functions such as checkweighing, counting, percentage weighing, and accumulation. Their compact form enables easy bench-top installation without compromising durability.
Key Features
- Compact & ergonomic form factor
- High-resolution loadcell technology
- Fast response & stable display
- Hygienic stainless steel platform
- Multi-function indicator support
- Battery operation options
- Lightweight yet industrial-grade design
Applications / Industries
- Food Processing & Ingredients Portioning
- Chemical & Pharma Batching
- Assembly & Parts Inspection
- Packaging & Sampling Operations
- Quality Control Labs
- Retail & Distribution Workstations
Technical Configuration (Range)
- Capacity: 5 kg to 100 kg
- Platform Sizes: Small to medium formats
- Accuracy: High-resolution industrial grade
- Construction: MS/SS platform combinations
Optional Add-ons
- Piece Counting mode
- Checkweighing (Hi/Lo/Ok)
- Battery Power Operated System
- Wireless communication
- Label/Thermal Printers
- Weight logging to PC or cloud
| Processor | 24 Bit Arm Processor |
| Display Type | 7 Segment Green LED Display |
| No. of Display Window | Single Display (Front only) |
| Repeatability | ± 1d |
| Linearity | ± 1d At Half Load & ± 2d At Full Load |
| Creep | ± 2d (for 3 Minutes with Full capacity) |
| Calibration Method | External Calibration Software Based |
| Power Connector | 3 Pin Mains Cord (5A) |
| Power Supply | 230 V (AC) |
| Frequency | 50 – 60 Hz |
| Power Consumption | < 5 Watts |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 95% RH Max (Non – Condensing) |
| Battery Capacity | 6V / 4.5 AH |
| Over-load | 100 % Of Scale Capacity +9e |
| Safe-load | 150 % Of Scale Capacity |
| Stabalisation Time | < 4s |
| Internal Resolution | 24 Bit ADC (1,00,000 Counts) |
