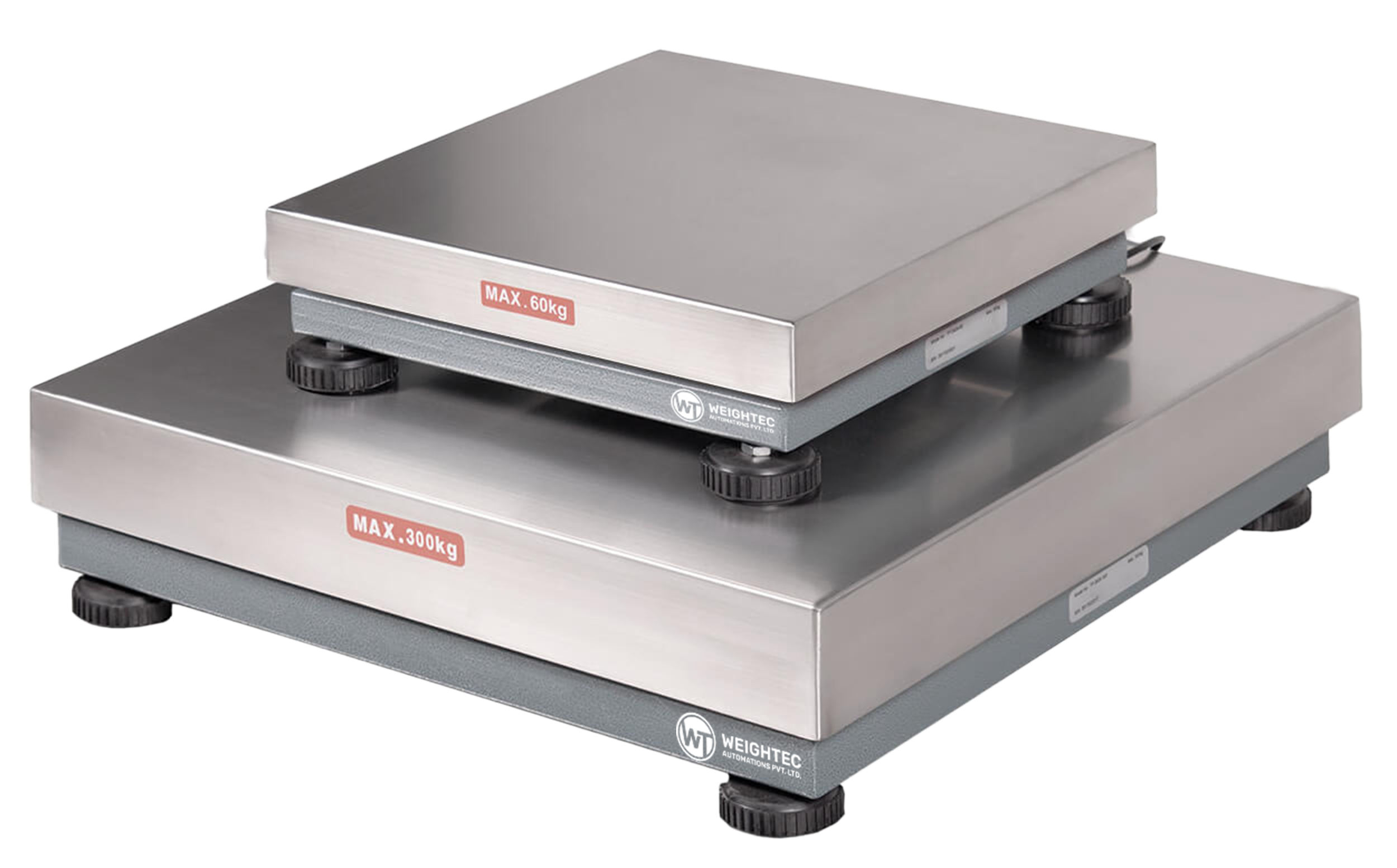

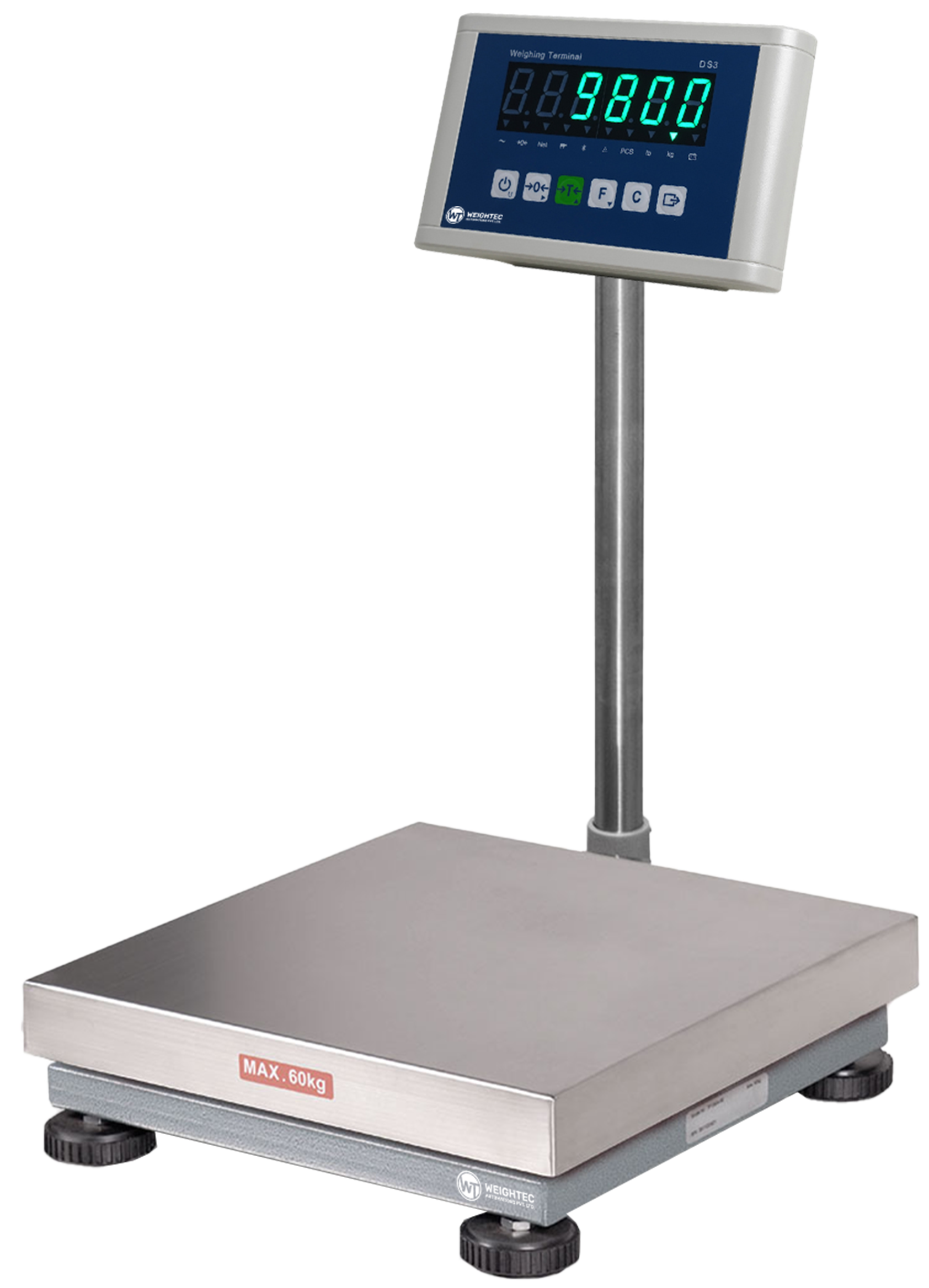

Industrial Platform Scales combine precision, durability, and flexibility for general industrial weighing needs. Featuring modular platform designs with high-accuracy loadcells and industrial-grade indicators, they deliver reliable performance with excellent repeatability.
These systems are suitable for factories, warehouses, fabrication units, and processing industries where weighing is part of the material handling workflow. Platform scales support multiple capacities, sizes, and configurations, making them versatile across a wide range of applications. Optional data outputs, printers, and automation-friendly interfaces enable integration with ERP, WMS, or production systems.
Key Features
- Modular platform structure
- High-precision industrial loadcells
- Rugged powder-coated framework
- Digital indicator with multiple operating modes
- Fast response & stable measurements
- Low maintenance design
- Accurate for repetitive weighing cycles
Applications / Industries
- Industrial Production
- Packaging & Dispatch Units
- Cement, Foundry & Fabrication Shops
- Food & Pharma Processing
- Automotive Component Handling
- Textiles & Materials Logistics
Technical Configuration (Range)
- Capacity: 50 kg to 2000 kg
- Platform Sizes: Various + Custom
- Material Options: MS / SS / Hybrid
- Accuracy Class: Industrial / Trade approved (optional)
Optional Add-ons
- Checkweighing function
- Counting function
- ERP/WMS integration
- Barcode Label Printer
- Weight Summation / Accumulation Software
- Connectivity: RS232 / USB / Ethernet / Wi-Fi
- Stainless Steel Construction (Hygienic)
Technical Specifications:
| Assembly | Mild Steel body with SS202 Pan |
| Load cell | Aluminium/Alloy steel/SS Loadcell |
| ADC type | 24 Bit Sigma Delta |
| Minimum Input Voltage | <1 mV |
| Minimum Input Sensitivity | 0.1 microvolt per interval |
| Analog Input Range | 0 mV to 15 mV |
| Loadcell | Upto 4 loadcells 350 ohm – 4 wire technique |
| Display types | LED |
| Calibration Method | Using keys, calibration in kilograms |
| Power Supply | 230 V AC 50 Hz |
| Operating Temperature | 0 deg to 50 deg |
| Battery | 7.4 V 2600 mAh |
| Indicator Mounting Type | Table Mount, Wall Mount, Pole Mount |
