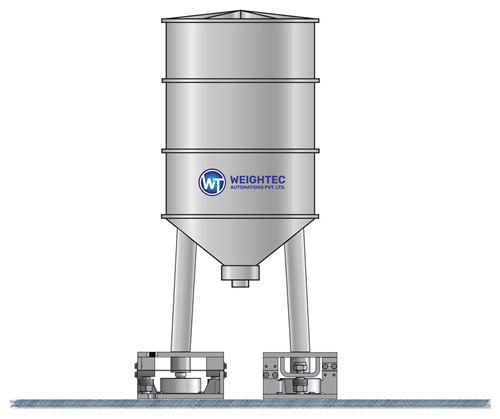

The WT-TWS Series from Weightec Automations is a precision-engineered tank weighing system
designed for accurate weight monitoring of industrial tanks, silos, and hoppers. Ideal for batching,
mixing, and inventory control applications, it ensures real-time data output and seamless
integration with process automation systems
Key Highlights:
- High-accuracy load cell-based weighing
- Suitable for tanks, silos, and hoppers
- Sturdy and rugged mounting assemblies
- Real-time weight display and output
- Easy calibration and low maintenance
- Seamless integration with PLC/SCADA systems
- Overload and shock protection
- Weatherproof and corrosion-resistant design
- Customizable capacities and configurations
- Optional flameproof indicators and controllers
- Customizable design based on tank size & capacity
Features:
- High-capacity load cells with rugged construction for heavy-duty applications
- Real-time weight data for inventory control and process automation
- Compatible with PLCs, SCADA, and other industrial communication systems
- Overload and shock protection for long service life
- Easy installation on existing tanks and silos without major modifications
Applications:
- Cement, minerals, and construction material storage
- Food & grain silos for milling and processing plants
- Chemical and plastic industries for bulk raw materials
- Pharmaceutical and specialty industries requiring accurate material control
Technical Specifications:

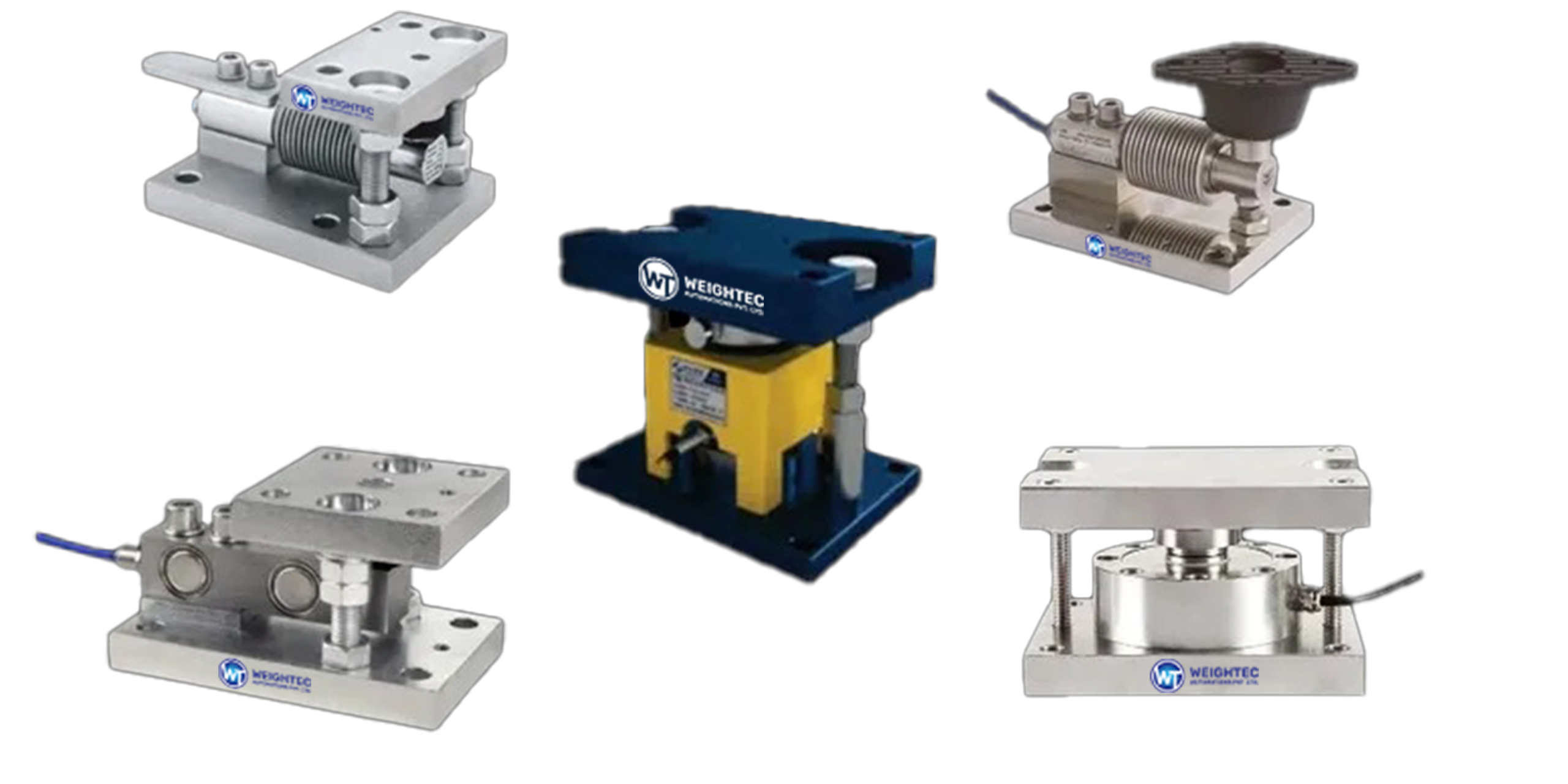

| Model | Capacity Range | Load Cell Type | Material | Accuracy | Output Options | Protection Class |

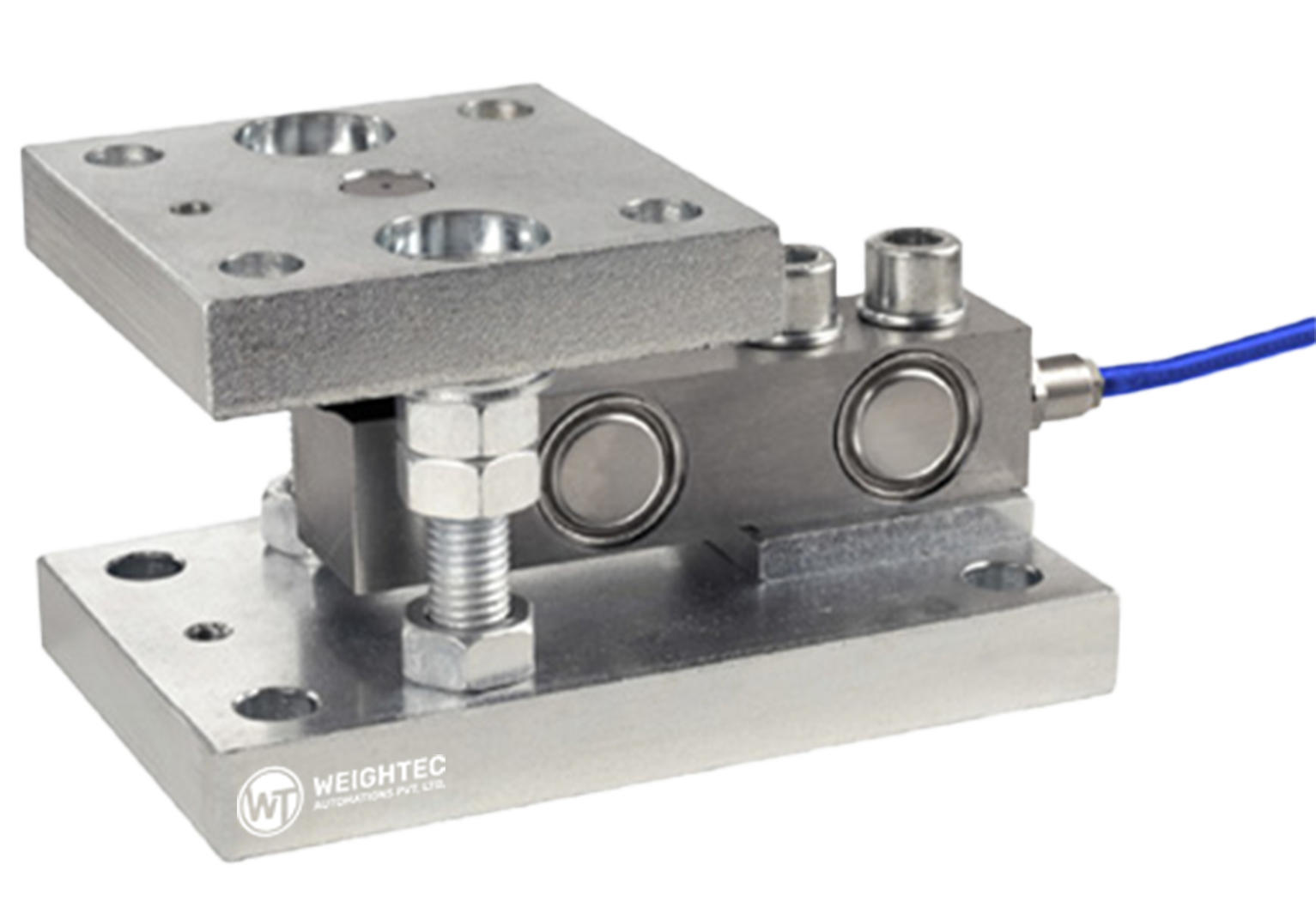

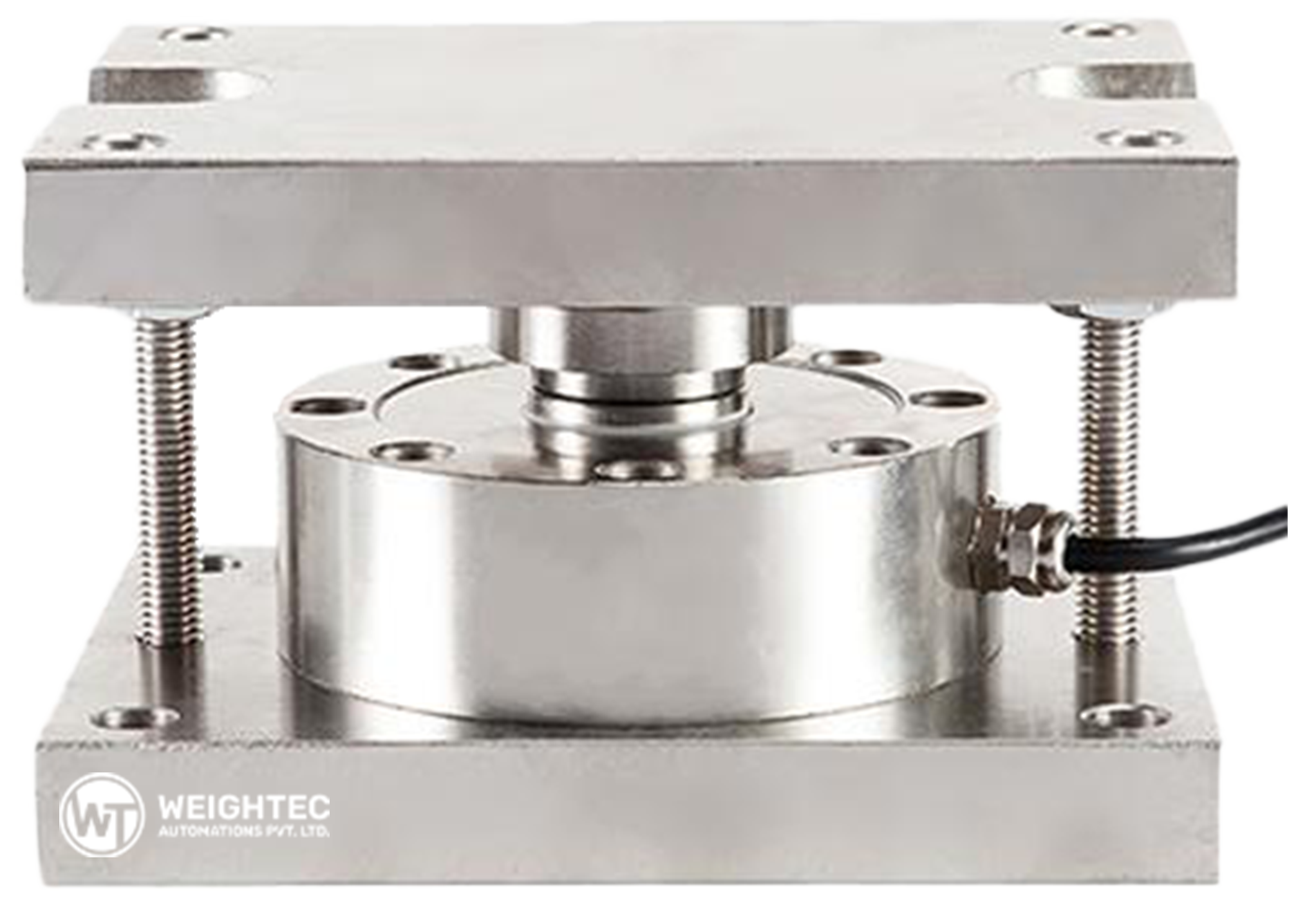

| WT-TWS-05 | Up to 5 Ton | Shear Beam/Compression Load Cell | Alloy Steel | ±0.05% | 4-20mA or 0-10V, RS-485 | IP65/IP67 |
| WT-TWS-20 | Up to 20 Ton | Shear Beam/Compression Load Cell | Stainless Steel | ±0.05% | 4-20mA or 0-10V, RS-485, Modbus | IP67 |
| WT-TWS-50 | Up to 50 Ton | Double Ended Shear Beam | Alloy/SS | ±0.05% | 4-20mA or 0-10V, RS-485, Profibus | IP67/IP68 |
| WT-TWS-100 | Up to 100 Ton | Rocker Pin Load Cell | Stainless Steel | ±0.03% | 4-20mA or 0-10V, Modbus TCP/IP | IP68 |
