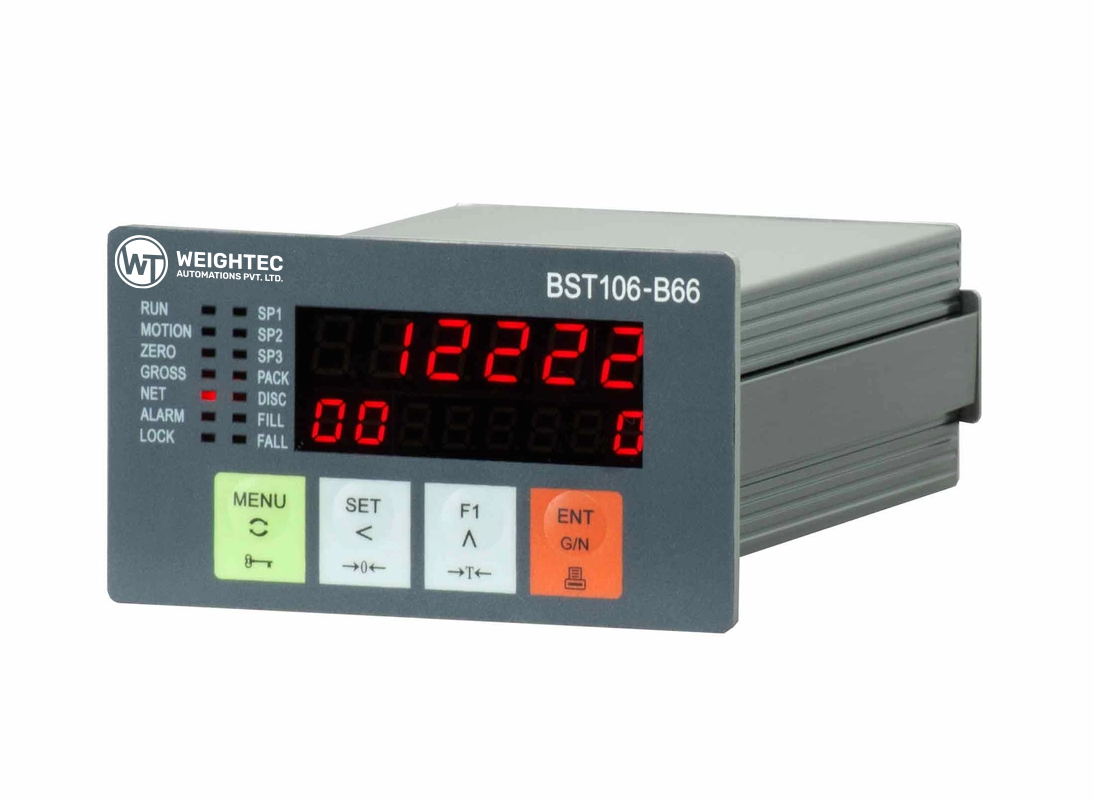

WT-B60[T] Weighing & Totalizing Controller

Main Applications

Weight Display, Setpoint DO Output, Manual Totalizing.

Weight Signal AO/Digit Transmission.

Weight Limit DO Alarm Mode.

Weight Increment DO Output Mode.

Weight Decrement DO Output Mode.

Weight Section DO Output Mode.



Main Features

EMC design with high anti-jam for industrial environment.

DC24V power input with reverse polarity protection.

32-bit ARM CPU with 48MHz clock & high arithmetic speed.

6+8 Red LED digital tubes for English&digit display.

24-bit ∑-△ADC with internal resolution 1/1,000,000.

High sampling frequency 400Hz.

Special Anti-vibration Digital Filtering Algorithm for precise

weighing, stable display and rapid response.

Auto Zero Tracking.

Load Calibration & Data Calibration.

Definable AO/COM[Communication Port].



Technical Specifications

Power Supply: DC24V±20%, Max. 5W.

Loadcell Excitation Voltage/Current: DC9V/120mA.

4 Loadcells[350Ω] connectable.

Weighing Signal Input Range: 0~22.5mV.

6 Normally Open Switch Inputs [DI].

5 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.

1 Analog Signal Output [AO]: 4~20mA, 0.05%FS.

COM1: RS232.

COM2: RS485.

Connect Host IPC[Modbus] & Remote Display.

Outline Size [W×H×D]: 110 × 62 × 150 mm.

Panel Cut-out Size [W×H]: 94 × 47 mm.

Operating Temperature: -25℃～+45℃.

Protection Level of Front Panel: IP65.

Accuracy Grade: III.

Verification Accuracy: 0.03%.

Static Weighing Accuracy: 0.2%~0.5%.
